PROPELLER SHAFTS

Our propeller shafts are made using advanced technological processes, in order to guarantee quality and reliability.

Their sizing complies with the requirements of the various Naval Registers for pleasure boats using the following materials: Stainless steel AISI 316 – MARINOX 17, 22, 25 or Duplex F51

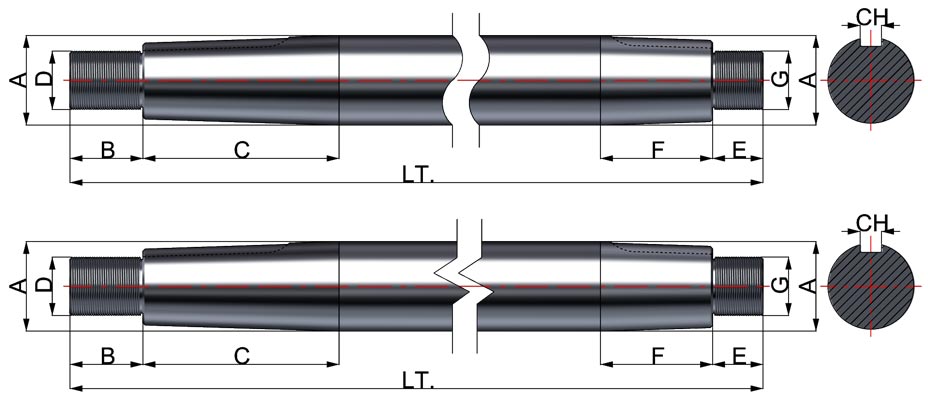

Measurement of standard shaft taper 1:10

Request custom-made shafts

A	B	C	D	E	F	G	CH	LT
25 - 1"	25	54	16 P1,5	25	40	16 P1,5	6	*
30	30	72	20 P1,5	25	40	20 P1,5	8	*
32 - 1" 1/4	30	72	20 P1,5	25	40	20 P1,5	10	*
35	35	80	24 P2	30	50	24 P2	10	*
40 - 1" 1/2	35	90	24 P2	30	55	27 P2	12	*
45 - 1" 3/4	40	100	30 P2	35	65	33 P2	14	*
50 - 2"	45	110	36 P3	35	65	33 P2	14	*
55 - 2" 1/4	45	120	36 P3	35	70	42 P3	16	*
60	55	135	42 P3	35	70	42 P3	18	*
65 - 2" 1/2	55	150	42 P3	35	95	42 P3	18	*
70	60	150	45 P3	40	95	45 P3	20	*
75 - 3"	60	175	45 P3	40	95	45 P3	22	*
80	65	175	45 P3	50	95	45 P3	22	*
85	70	195	52 P3	50	95	52 P3	24	*
90	70	205	52 P3	50	95	52 P3	24	*
95	85	215	56 P3	55	105	70 P3	28	*
100 - 4"	85	225	64 P3	55	105	70 P3	28	*
105	90	225	70 P3	55	115	70 P3	28	*
110	90	225	80 P4	55	145	80 P4	28	*
115	90	235	80 P4	55	155	80 P4	32	*
120	90	250	80 P4	55	165	80 P4	32	*
We *realize propeller shafts Max. Ø200mm \| Length on request**

Download drawings
